Specifications |
||||
General Overview |
||||
| Frame | Galvanized steel frame, anti-corrosion powder coating | Walls | 50mm rock wool sandwich panels | |
| Floor | MGO flooring | Roof | Color steel tile+Insulation glass wool+ceiling tile | |
| Entry Door | Steel anti-theft door | Windows | Double-glazed plastic steel window with Flyscreens | |
| Lighting | LED oyster lights supplied | Electrical | Customized electrical system accoding to local standards | |
External Walls |
Internal Walls |
|||

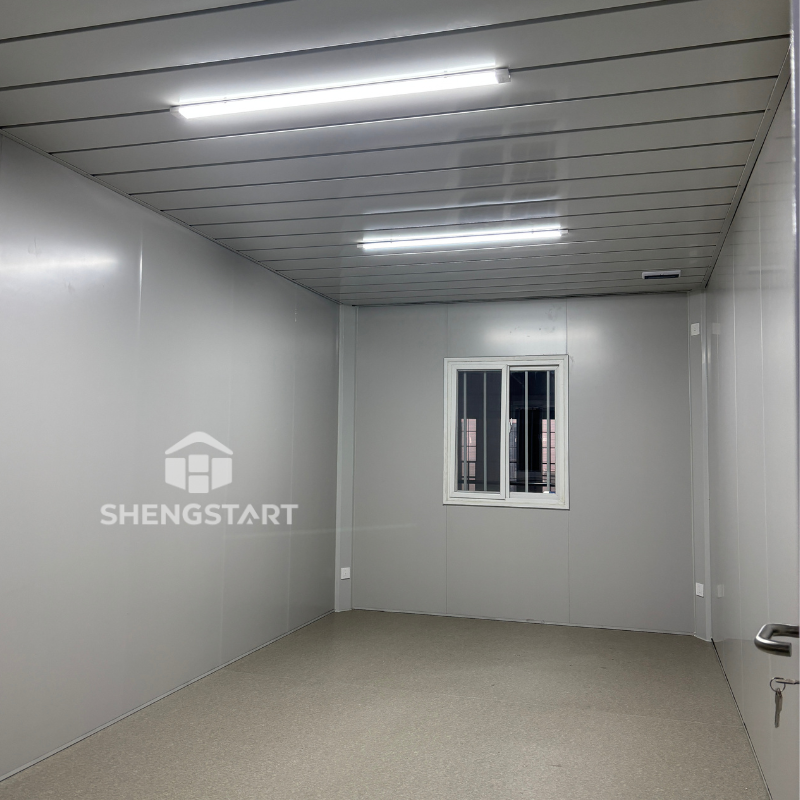

| With Cladding | Color steel sandwich panel wall | Interior Walls | Steel panels with an off white finish | |
| Doors | Windows | |||

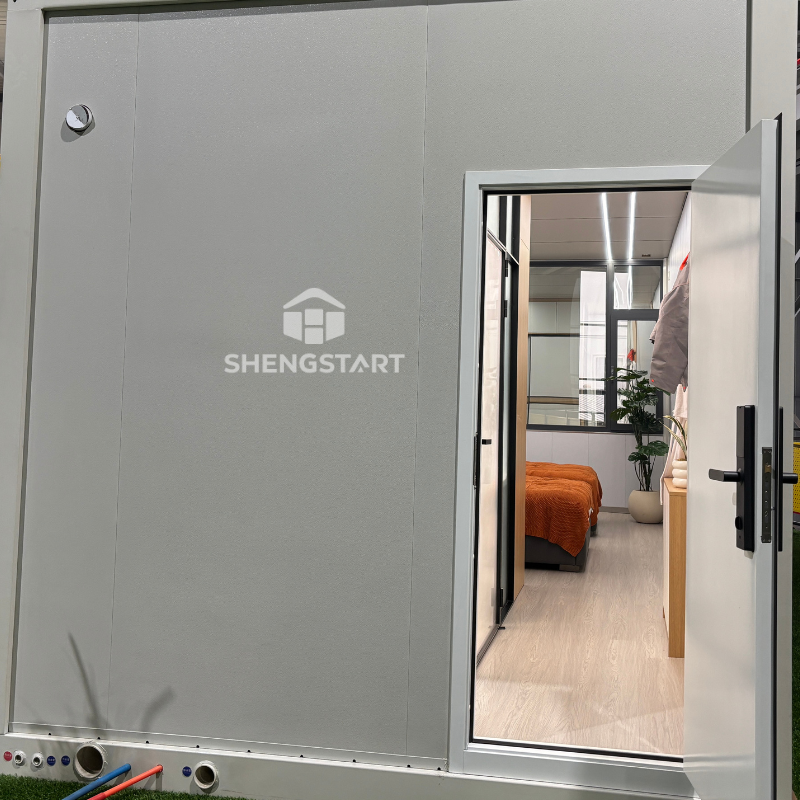

| Entry | Steel anti-theft door | Frames | Double-glazed plastic steel window with Fly-screens | |
Kitchen |
Bathroom |
|||
| Plan | Kitchen plan provided | Shower | Full room width shower on acrylic shower base with a rain maker shower head |
|
| Cabinets | Soft closing kitchen cabinets and optional overhead cabinets | Toilet | S-trap toilet with soft closing lid | |
| Sink | Stainless sink with tap mixer | Vanity | Vanity with porcelain sink, chrome flick mixers | |
| Benchtop | Engineered stone | |||
Flooring |
Roof |
|||
| Sub-floor | Magnesium subfloor concrete composite – water, rot and insect resistant |
Exterior Panels | Color steel tile | |
| Top Layer | 2mm vinyl timber pattern | Insulation | Glass wool | |
| Skirting | PVC cornice and skirting | Internal ceiling | Steel plate Ceiling Tile | |
Electrical |
Plumbing |
|||
| Power | All electrical points are prewired inside walls. Fit off of electrical points required after opening and installing, Aerial point provided for TV. |
Water | Water connection located on the exterior rear wall | |
| Lighting | All lights and switches are pre-wired inside walls. Fit off of points required after opening and installing the building. LED oyster lights supplied | Waste | Waste connection located on the exterior rear wall | |
| Certification | CE/SAA/UL | |||
Flat-pack Container

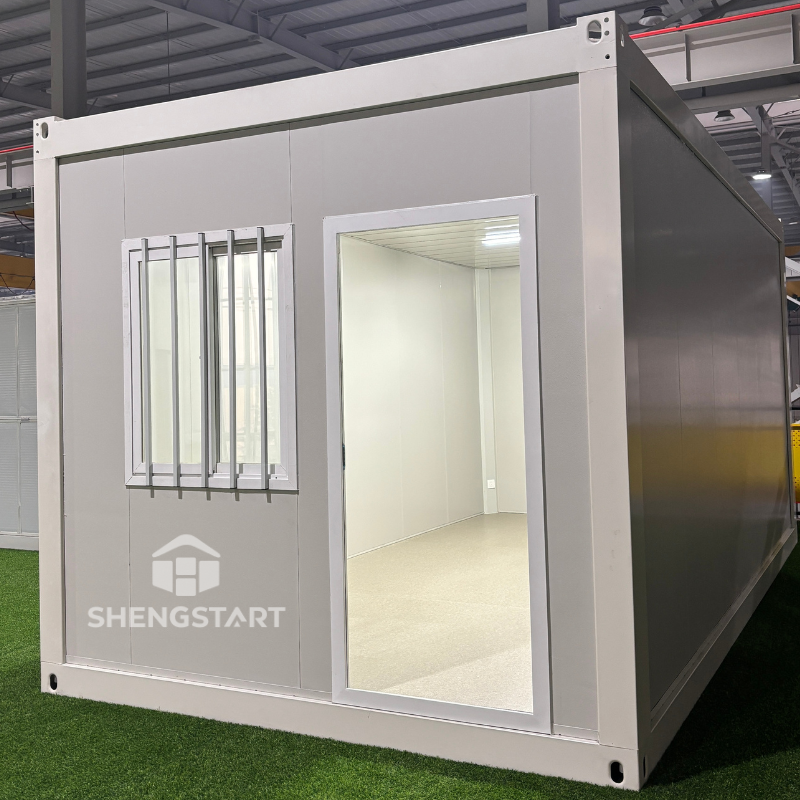

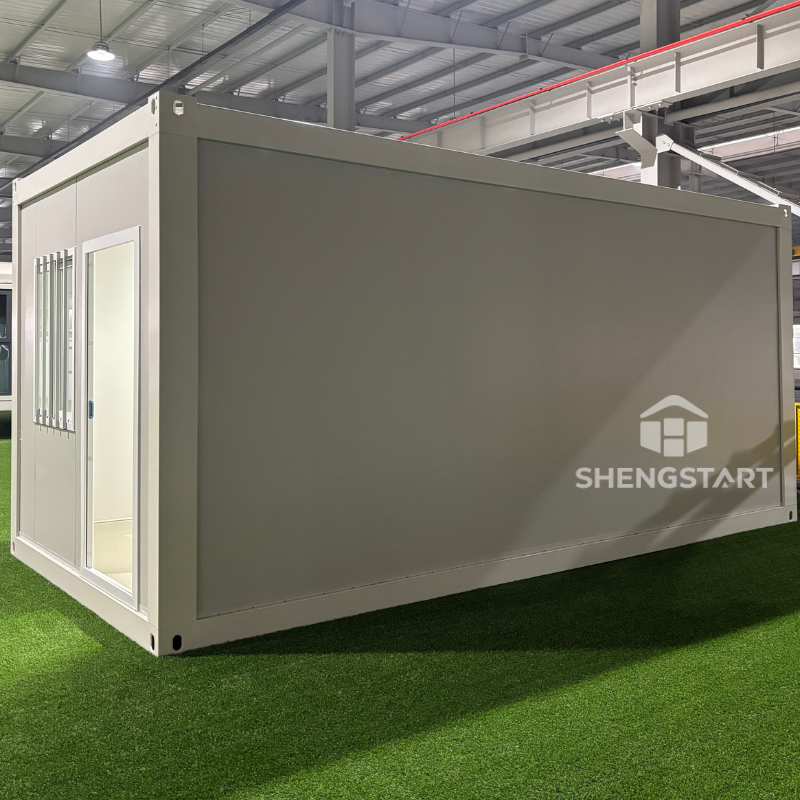

Disassemble Container House—Modular Dormitory/Office
| Square Meters | 18㎡ |
| Layout | 1 bed+1 bathroom+1 kitchen 2 beds + 1 bathroom 4 beds |
| External Dimension | L6055*W2990mm*H2896mm |
| Internal Dimension | L5800mm*W2740mm*H2600mm |
| Approx Weight | 1300kg |
| Loading Quantity | One 40HQ container can hold 6 units |
